Jianping Shi Li Xu Jiaya Jia
The Chinese Univeristy of Hong Kong
The above image is downloaded from flicker.com (http://goo.gl/aijRh3) with aperture size f/5.6 and exposure time 1/500s. When a supposedly clear image is viewed in its original resolution, slight blurriness can still be noticed. It is a general phenomenon.
We tackle a fundamental yet challenging problem to detect and estimate just noticeable blur (JNB) caused by defocus that spans a small number of pixels in images. This type of blur is very common during photo taking. Although it is not strong, the slight edge blurriness contains informative clues related to depth. We found existing blur descriptors, based on local information, cannot distinguish this type of small blur reliably from unblurred structures. We propose a simple yet effective blur feature via sparse representation and image decomposition. It directly establishes correspondence between sparse edge representation and blur strength estimation. Extensive experiments manifest the generality and robustness of this feature.

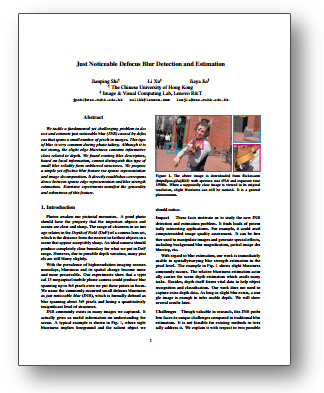

"Just Noticeable Defocus Blur Detection and Estimation"
Jianping Shi, Li Xu, Jiaya Jia
IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2015
[Data and Results]
All results are available here.

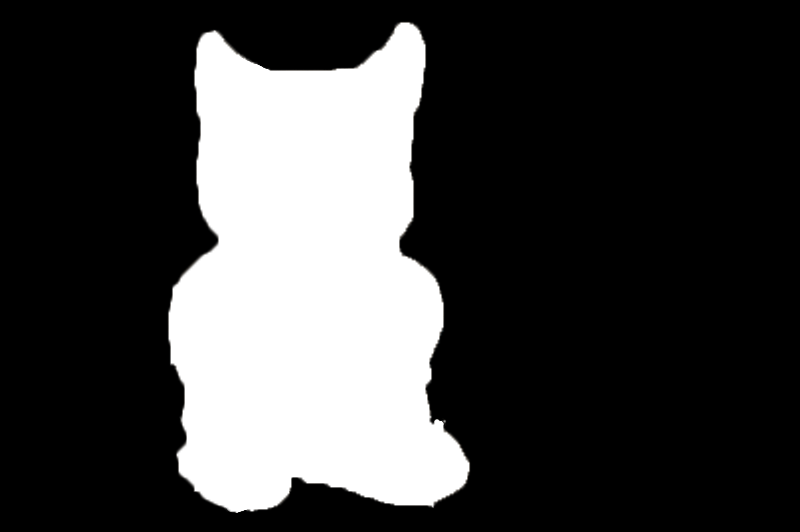

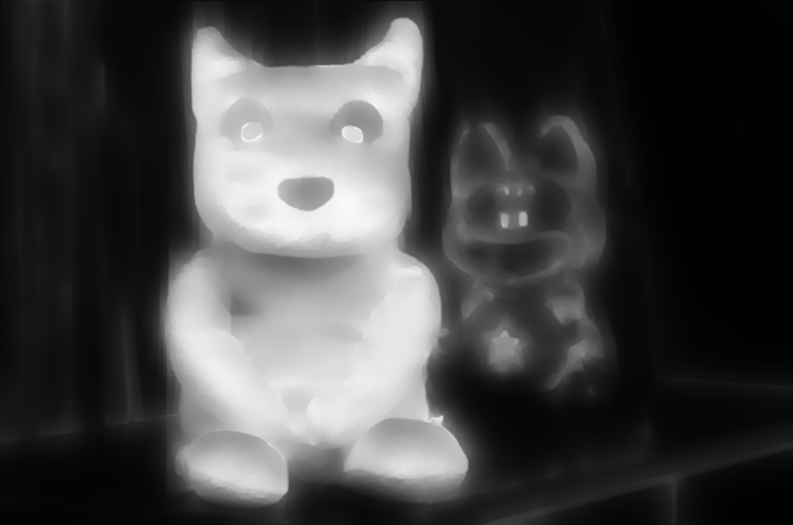

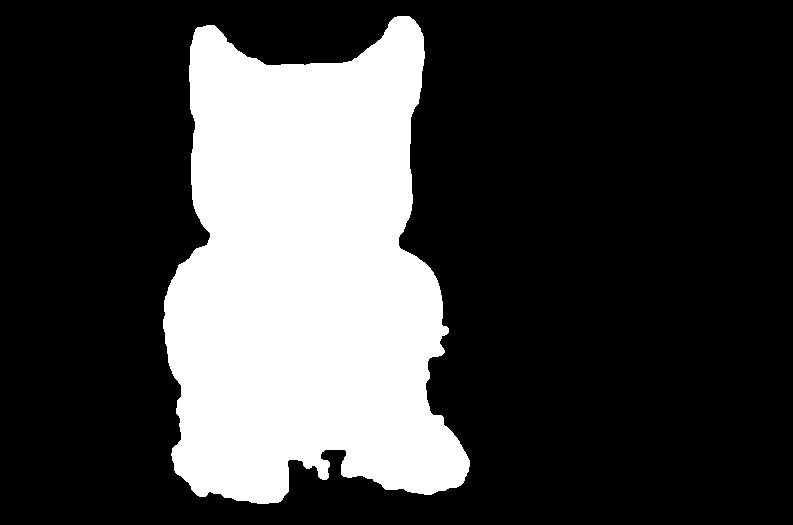

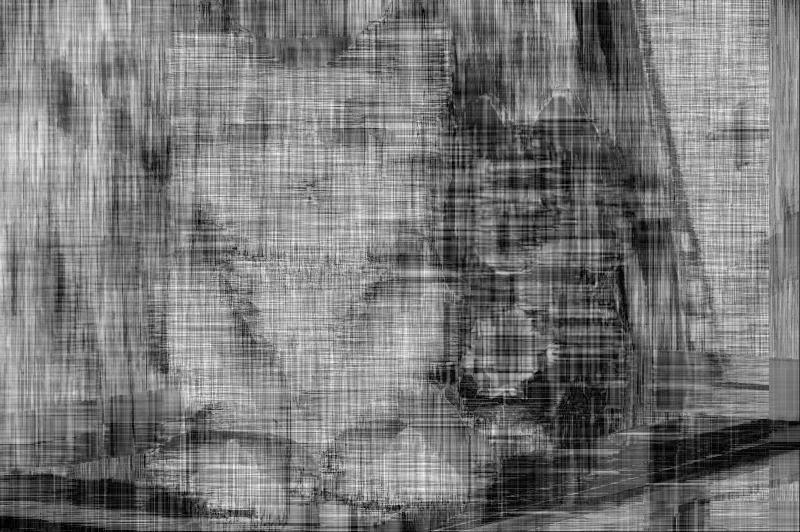

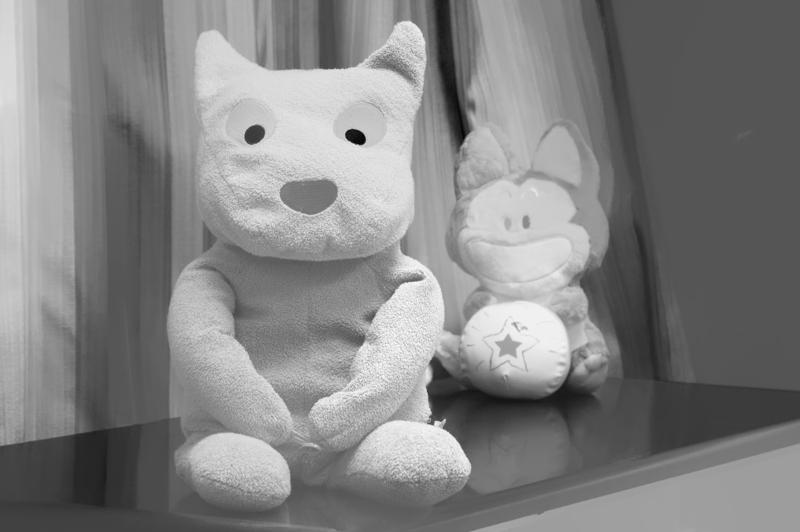

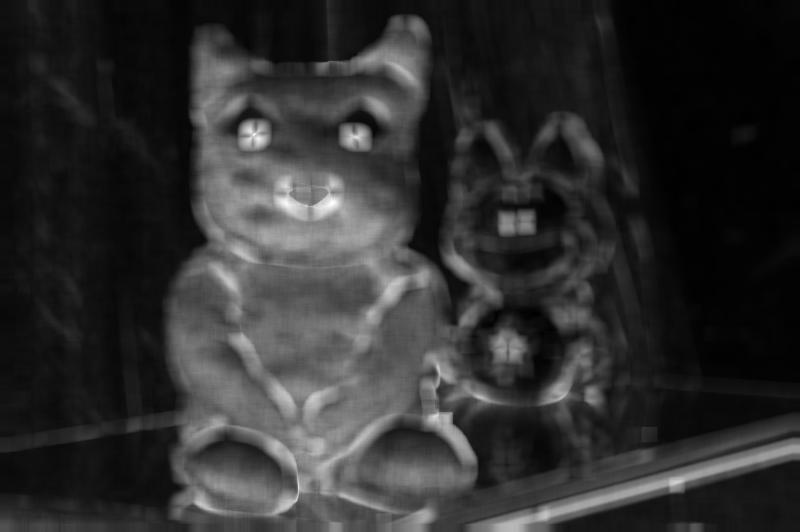

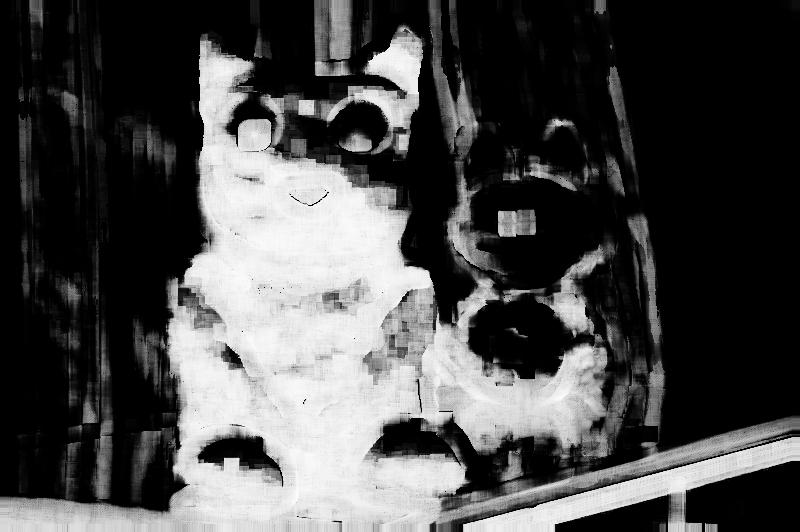

|(a) Inpug||(d) Bae and Durand ||(g) Liu et al. ||(j) Our raw feature|
|(b) Ground truth||(e) Zhuo and Sim ||(h) Shi et al. ||(k) Our final blur result|
|(c) Chakrabarti et al.||(f) Zhu et al. ||(i) Su et al. ||(l) Our binary map|

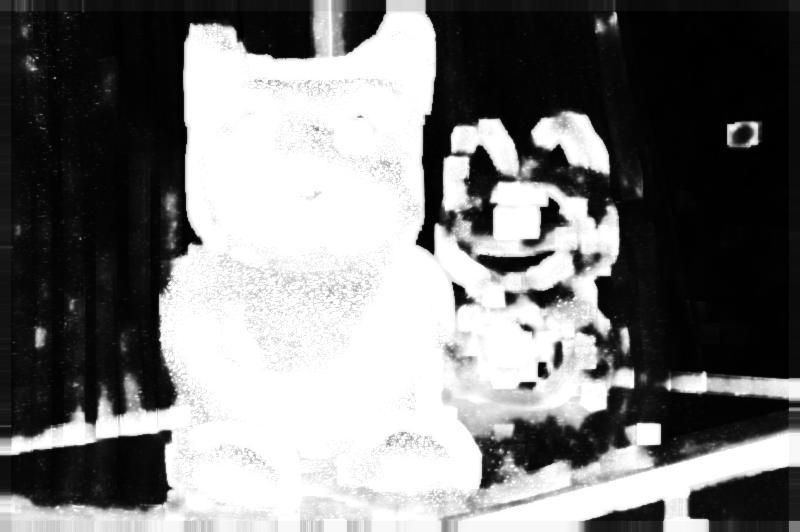

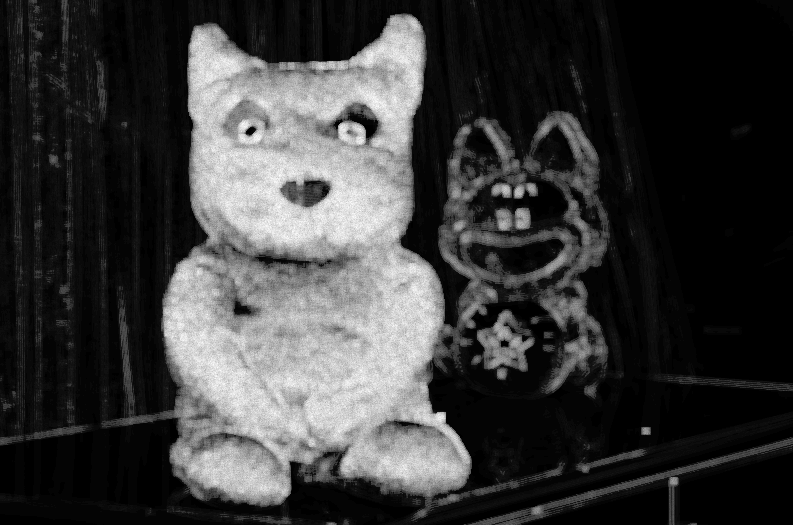

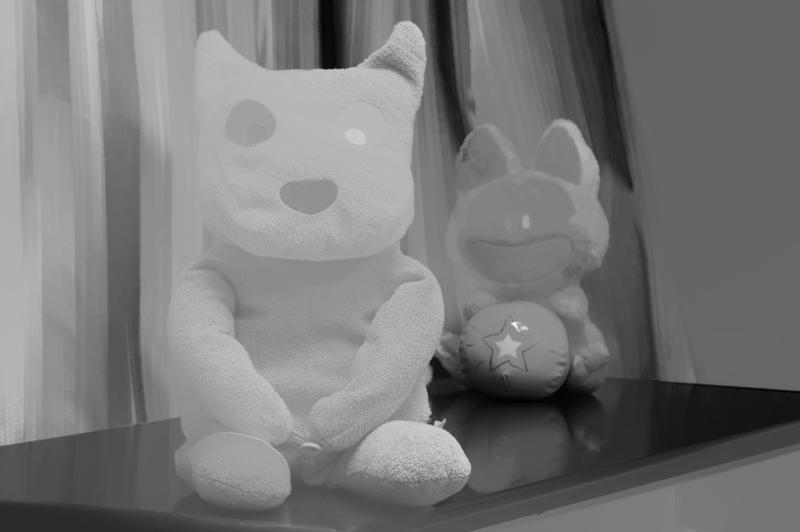

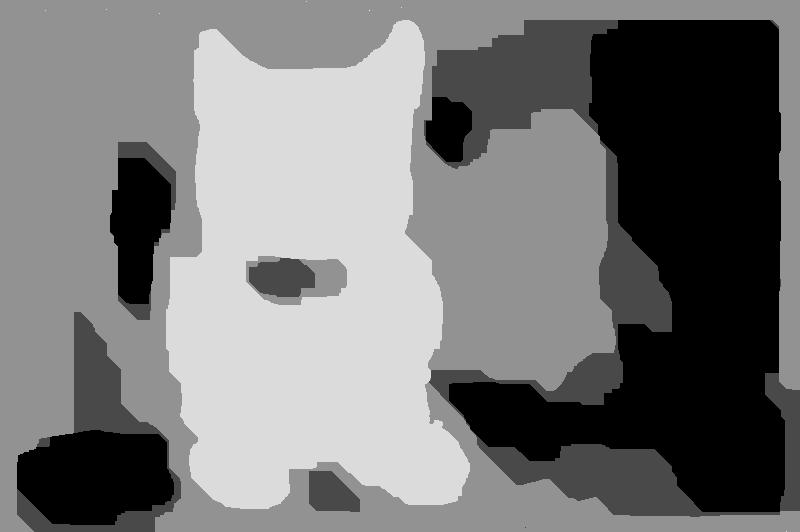

Fig. 2 Blur map comparison.
Our blur map results can avail several applications including deblurring, refocus, and depth estimation.

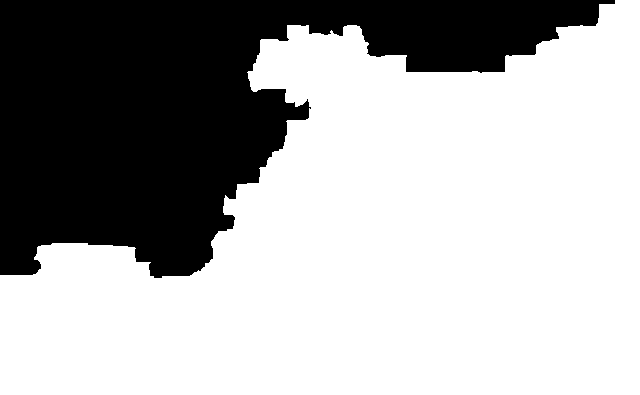

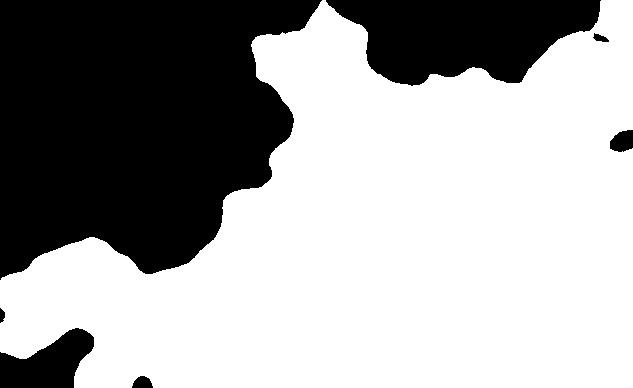

|Input||Ground Truth Mask||Feature Map||Blur Mask||Deblurring Result|

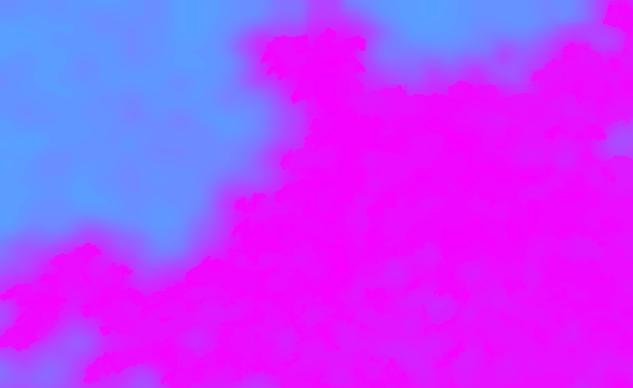

Fig. 3 Deblurring using our blur estimate.
|(a) Input||(b) Feature Map||(c) Refocus Result||(d) Refocus Result|

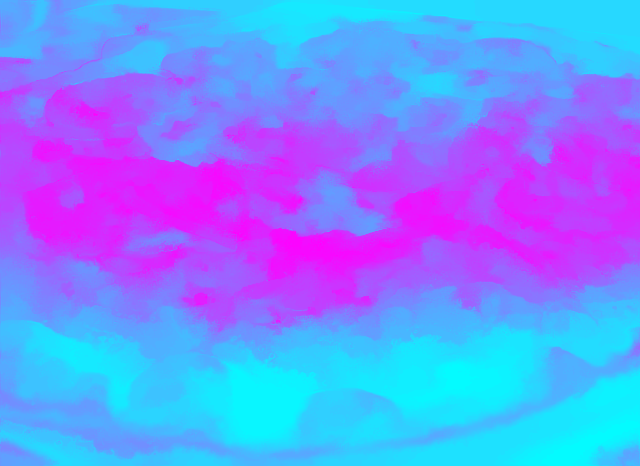

Fig. 4 Refocusing using our blur map. (a) is the input image. (b) is our learned feature map. (c) and (d) shows different refocusing result given our blur feature map. The arrow highlights the focus point.
|(a) 0.5m||(b) 0.6m||(c) 0.7m||(d) 0.8m||(e) 0.9m||(f) 1.0m|
Fig. 5 Calibrated image with their corresponding blur features. The set of images are taken using aperture size f/5.0 in different distances.
Fig. 6 (a), (c), and (e) are three test examples with distances 0 . 8m, 0.5m, and 0.7m. (b), (d), and (f) are their corresponding features
